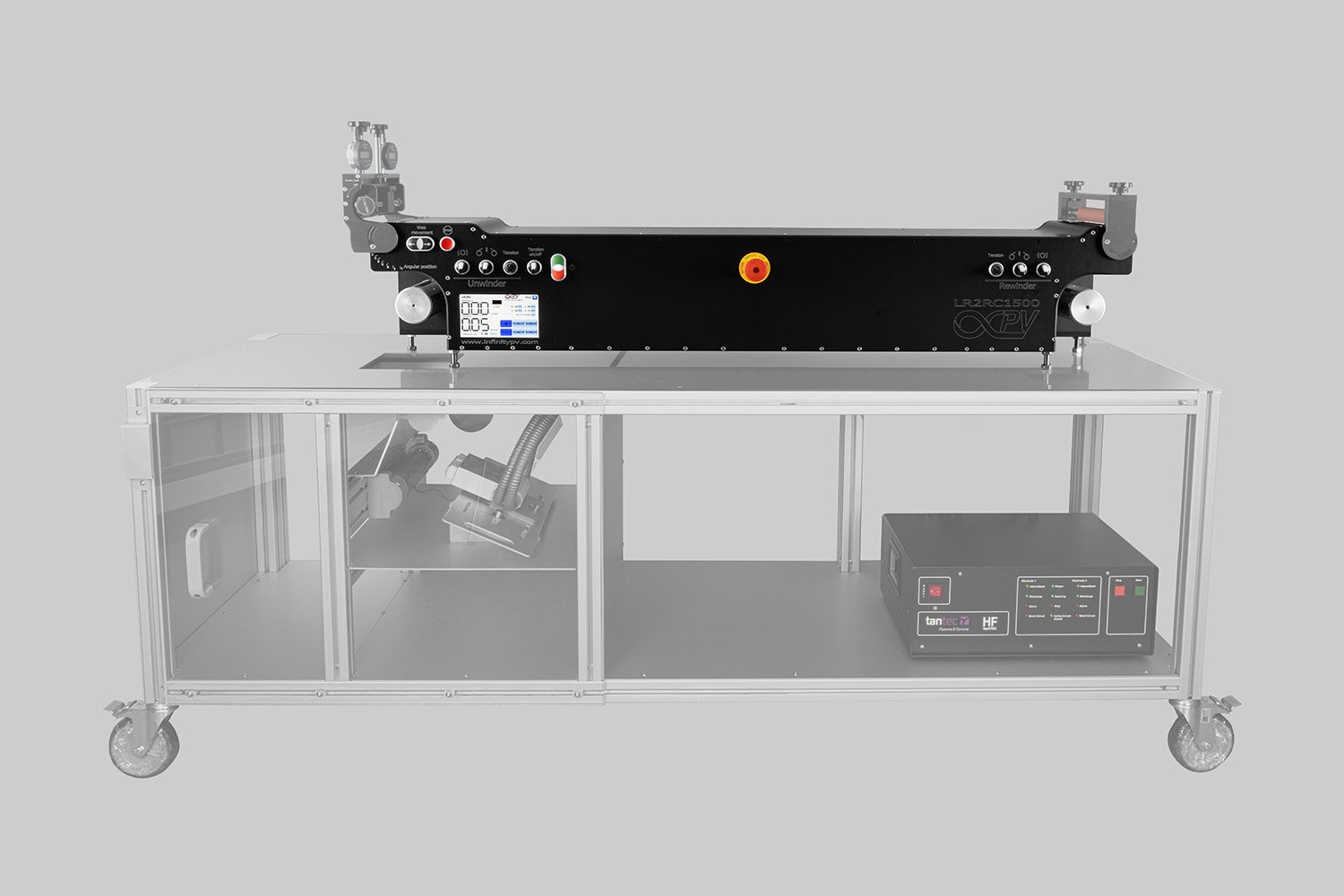

LR2RC1500 Platform (Wide)

€89,999.00

When ample laboratory space is available and integration of custom instruments is a priority, the LR2RC1500 delivers the necessary length for an expansive R2R line.

When ample laboratory space is available and integration of custom instruments is a priority, the LR2RC1500 delivers the necessary length for an expansive R2R line.



Compact and Fully Modular Roll-to-Roll Coater

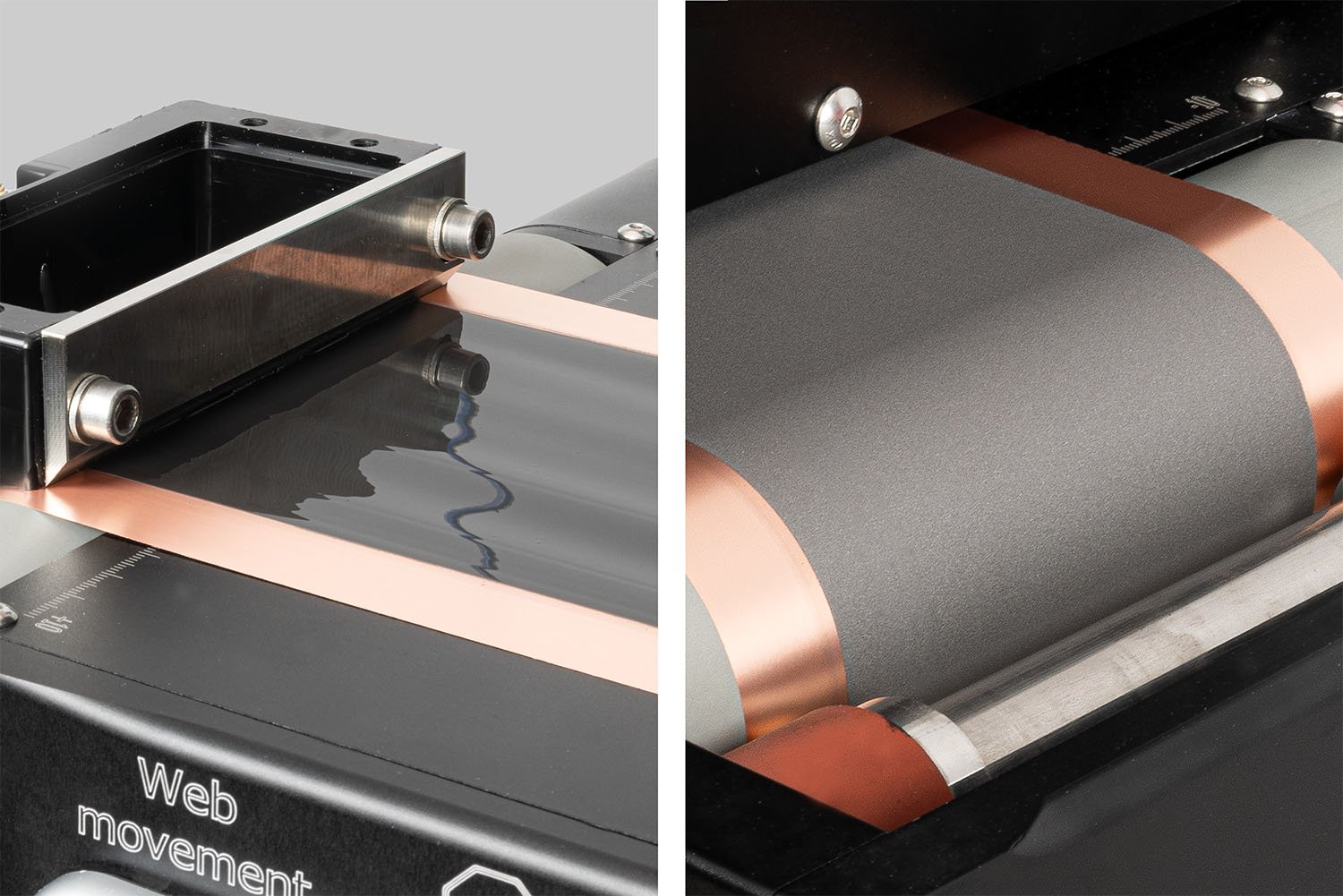

The Laboratory Roll-to-Roll Coater from infinityPV is a high-precision, compact and fully modular system that enables high-precision processing of thin functional films from lab to small pilot scale. With customizable platform sizes and interchangeable components—including slot-die heads, slurry coaters, flexographic printers, air knives, pumps, drying and curing units, laminators, and surface treaters—it fits seamlessly into existing lab setups like gloveboxes or fume hoods.

Capable of handling hundreds of meters of foil, it supports scalable production for applications such as batteries, medtech, fuel cells, printed solar cells, sensors and more. The system’s CE certification and CSA/UL compliance underscore its reliability and adherence to international safety standards, ensuring consistent, high-quality results across a range of advanced applications.

Ready to build your Own Laboratory Roll-to-Roll Coater? Start the customizer here.

Key Features

  • Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.

  • Customizable: Choose from a variety of lengths and widths, with numerous accessories available.

  • Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.

  • Modular Drying/Curing System: Accommodates various drying and curing methods.

  • Software Control Option: Advanced control options for precision and repeatability.

  • Web Tension Control: Ensures consistent quality across runs.

  • CE Certified - CSA/UL Compliant: Meets international safety standards.

Technical Specifications

  • Web Speed 0.05-2.8 m/min

  • Working Width Up 310 mm

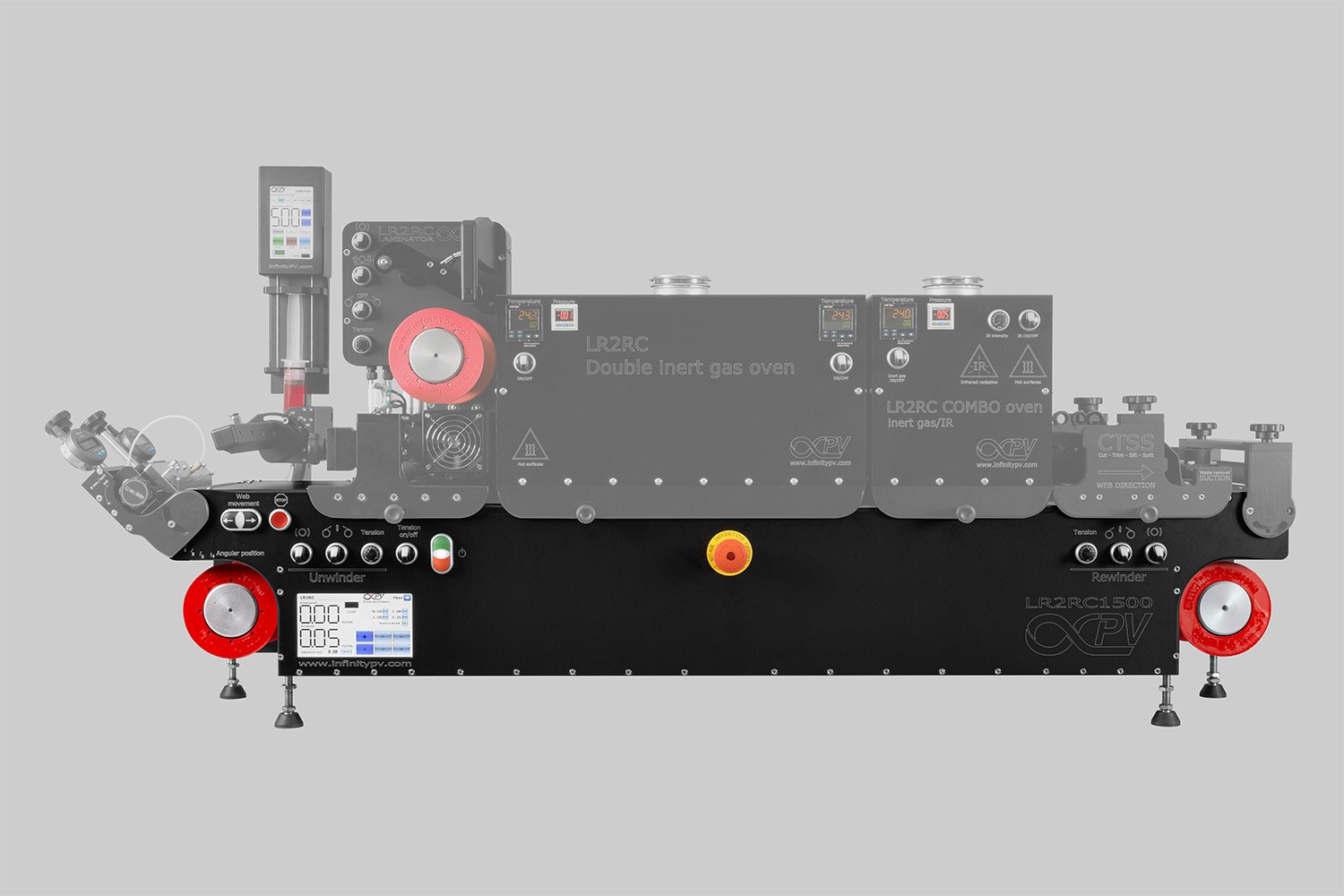

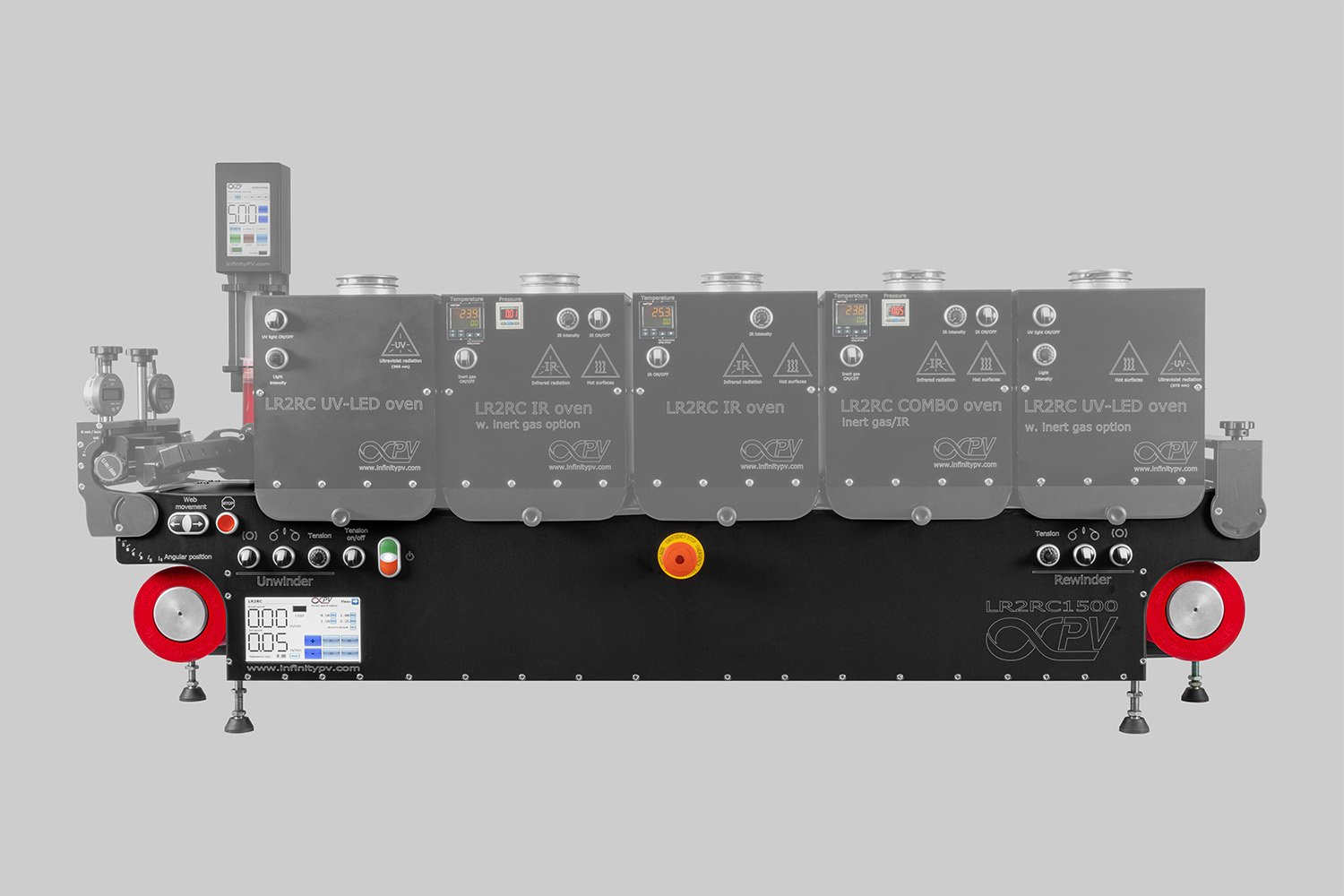

  • Up to 5 Oven Systems Can Be Mounted

  • Touch Screen

  • Buttons for Unit Operation (Option for Full Software Control)

  • Simple Computer Logging (Options Available)

  • Web Tension Control

  • Advanced Unwinder/Rewinder Mode

  • Spindles - Automatic Compressed Air for 3-Inch Core

  • Rollers in Anodized Aluminum (Options Available)

  • Operates from a Single Phase (240VAC)

  • Dimensions (WxDxH): 1500 mm x 460 mm x 300 mm | 100 kg
