Large Area LED Based Solar Simulator

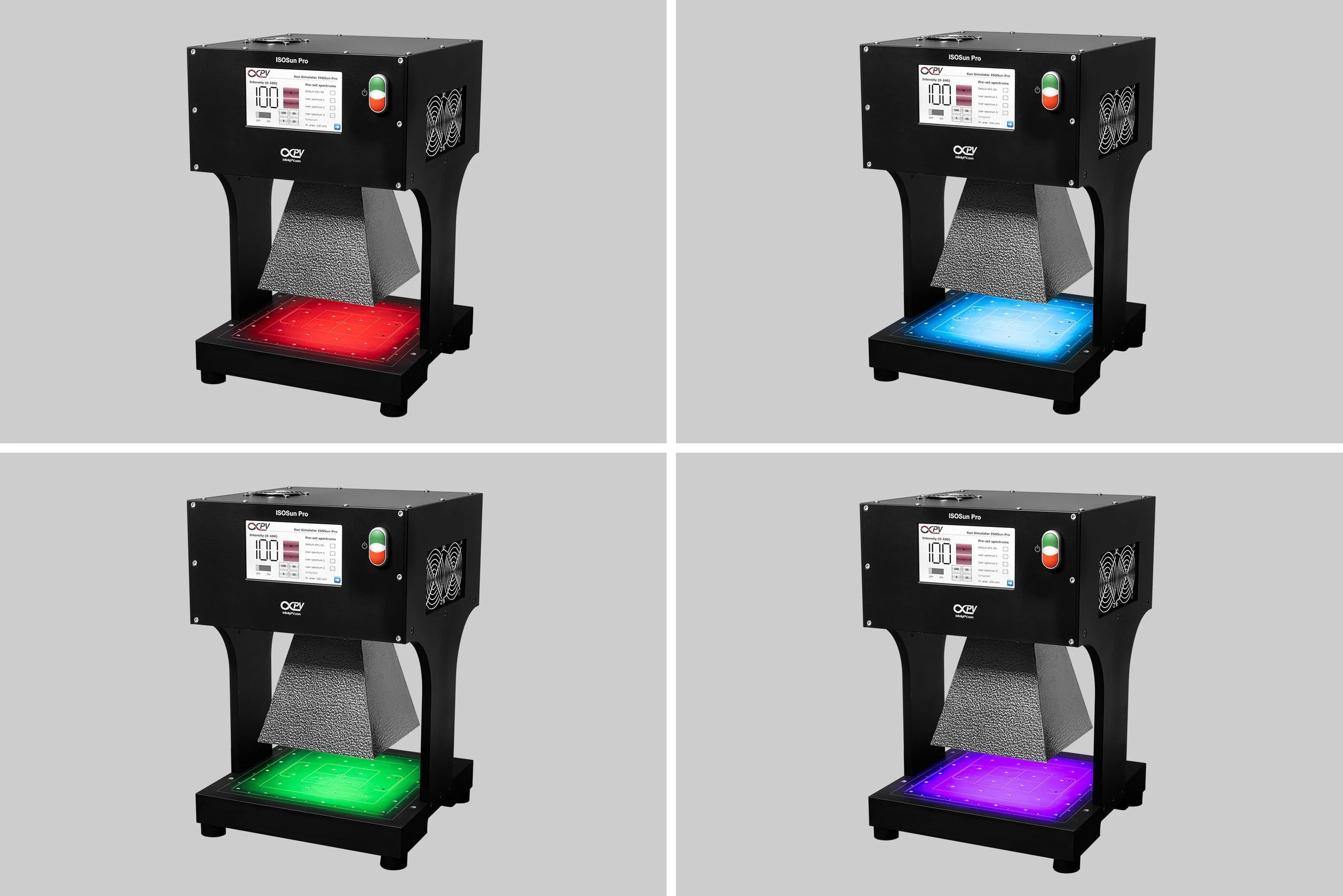

The ISOSun Pro Solar Simulator is a large-area laboratory solar simulator designed to provide stable illumination across the 385–1300 nm spectral range. With 20 independently tunable LED wavelengths, it enables precise reproduction of both indoor and outdoor spectra, including AM1.5G. Outstanding performance in spectral match, spatial uniformity, and temporal stability makes the ISOSun Pro a reliable and consistent platform for accurate measurements.
Key Features

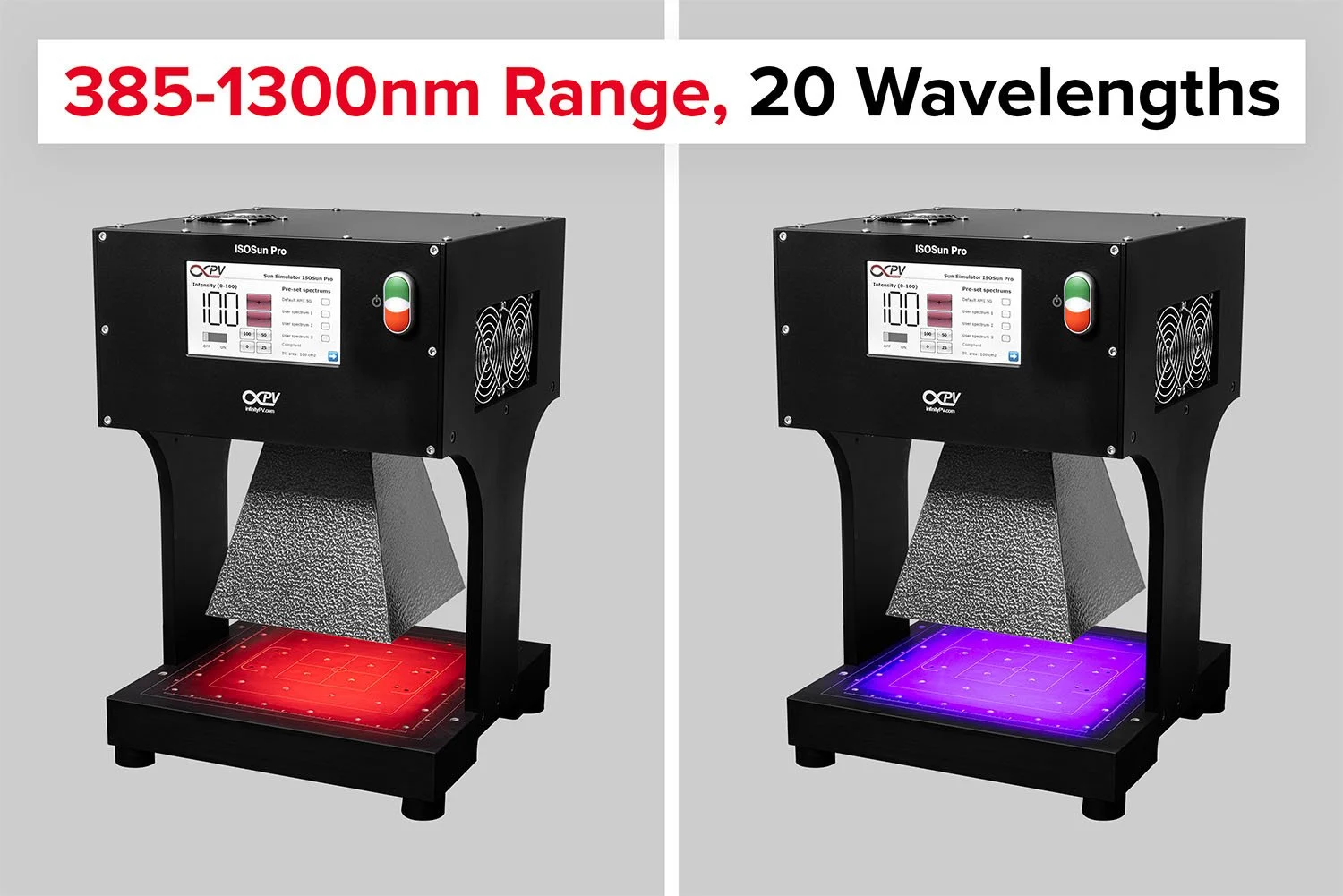

Adjustable spectrum: 385–1300 nm with 20 independently tunable LED channels (UV–Vis–NIR)
Large illuminated area: Up to 1000 cm²
Intensity control: Precise overall intensity and spectral tuning, including AM1.5G
Design: Robust benchtop laboratory unit
Operation modes: Standalone or PC-controlled
Software: Free spectrum-matching software for reference standards
Applications: Suitable for small- to large-area solar cells and controlled illumination research
High concentration: Up to 7 suns, with adjustable illuminated area using reflectors
Spatial uniformity: Class A+ (25% of aperture using reflectors), Class A (33 % of aperture using reflectors), Class B (90 % of aperture using reflectors), Class C (100% of aperture using reflectors)
Spectral uniformity: Class A+
Temporal stability: Class A+
Reflector Apertures Available: 6.25 cm², 25 cm², 50 cm², 100 cm², 200 cm², 400 cm², 1000 cm²
Optional Accessories

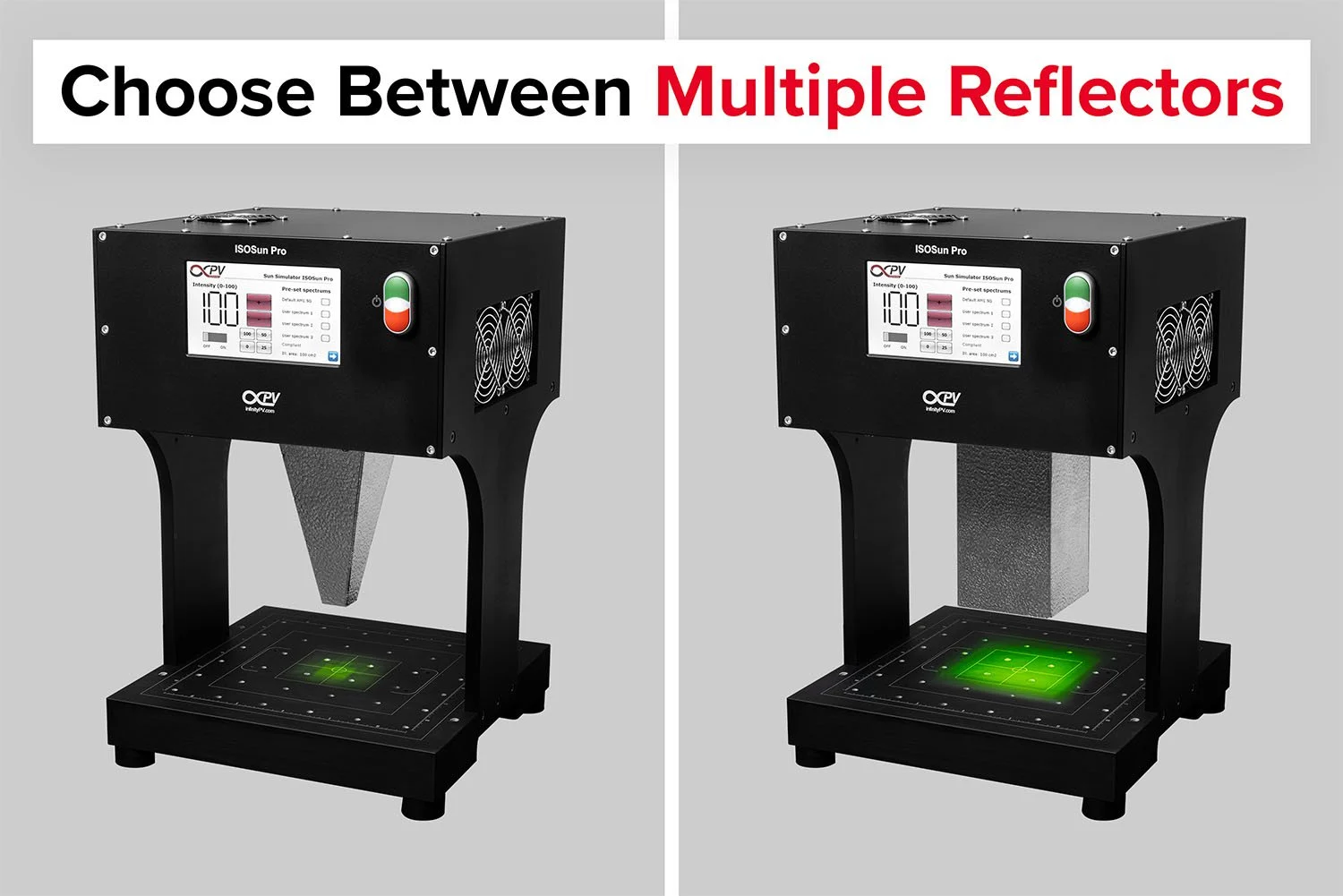

Reflectors: High-performance aluminium reflectors designed for seamless interchangeability. These different apertures allow you to transform a single light source into a multi-application powerhouse.
Calibration Platform: Comprising silicon photodiode (350-1100m), InGaAs photodiode (900-1700nm) and diffuse reflector for optical fiber output (i.e. for spectrometer). Works together with our software in conjunction with either the 8CH MPPT SMU or the 4CH MPPT SMU.
Data and Specifications
Spectral Irradiance
Easy tuning of the 20 independent LED wavelengths, spanning a spectral range of 385–1300 nm, enables accurate reproduction of indoor and outdoor spectra, including AM1.5G. The included software makes it easy to find the lamp settings that best match a given reference spectrum and in addition to relative tuning of the individual colours, the lamp allows the overall light intensity to be scaled uniformly across all channels.
Spatial Uniformity
Spatial uniformity measures how evenly light is distributed across the test plane. The ISOSun Pro achieves A+ uniformity (≤1%) over its core area and Class A or better across the majority of the field. The result: reliable, high-precision testing of solar cells at any size
Temporal Instability
The ISOSun Pro shows excellent stability over time being class A+ in both short-term and long-term temporal instability. The high stability over time allows for consistent measurements of your devices.
