Laboratory Roll-to-Roll Coater

A compact and modular roll-to-roll lab coater that transforms the way functional thin films are printed and coated.

Laboratory roll-to-roll slot-die coater machine application

Compact Roll-to-Roll Processing

The Laboratory Roll-to-Roll Coater (LR2RC) is a compact, high-precision R2R coating and printing system designed for processing thin functional films. Ideal for laboratory research and small pilot-scale production, it enables the continuous processing of hundreds of meters of foil while maintaining exceptional precision and repeatability.

Modular Design for Maximum Flexibility

Built around a highly modular platform, the Laboratory Roll-to-Roll Coater can be configured to match your exact process requirements. Choose from multiple platform lengths and widths, then equip the system with a wide range of printing and coating units, drying and curing systems, foil pretreatment modules, advanced laminators, and other process components. Its compact footprint allows seamless integration into existing laboratories, gloveboxes, and fume hoods without requiring additional infrastructure.

Scalable Performance with User-Friendly Operation

The Laboratory Roll-to-Roll Coater bridges the gap between laboratory research and small-scale production by providing a complete turnkey solution for scalable process development. Advanced slot-die heads, precise web tension control, and optional software ensure consistent, high-quality results across applications including batteries, MedTech, fuel cells, solar cells, transistors, LEDs, and sensors. Easy-to-swap process modules simplify system reconfiguration, while CE certification and CSA/UL compliance provide confidence in safety, reliability, and long-term operation.

Key Features

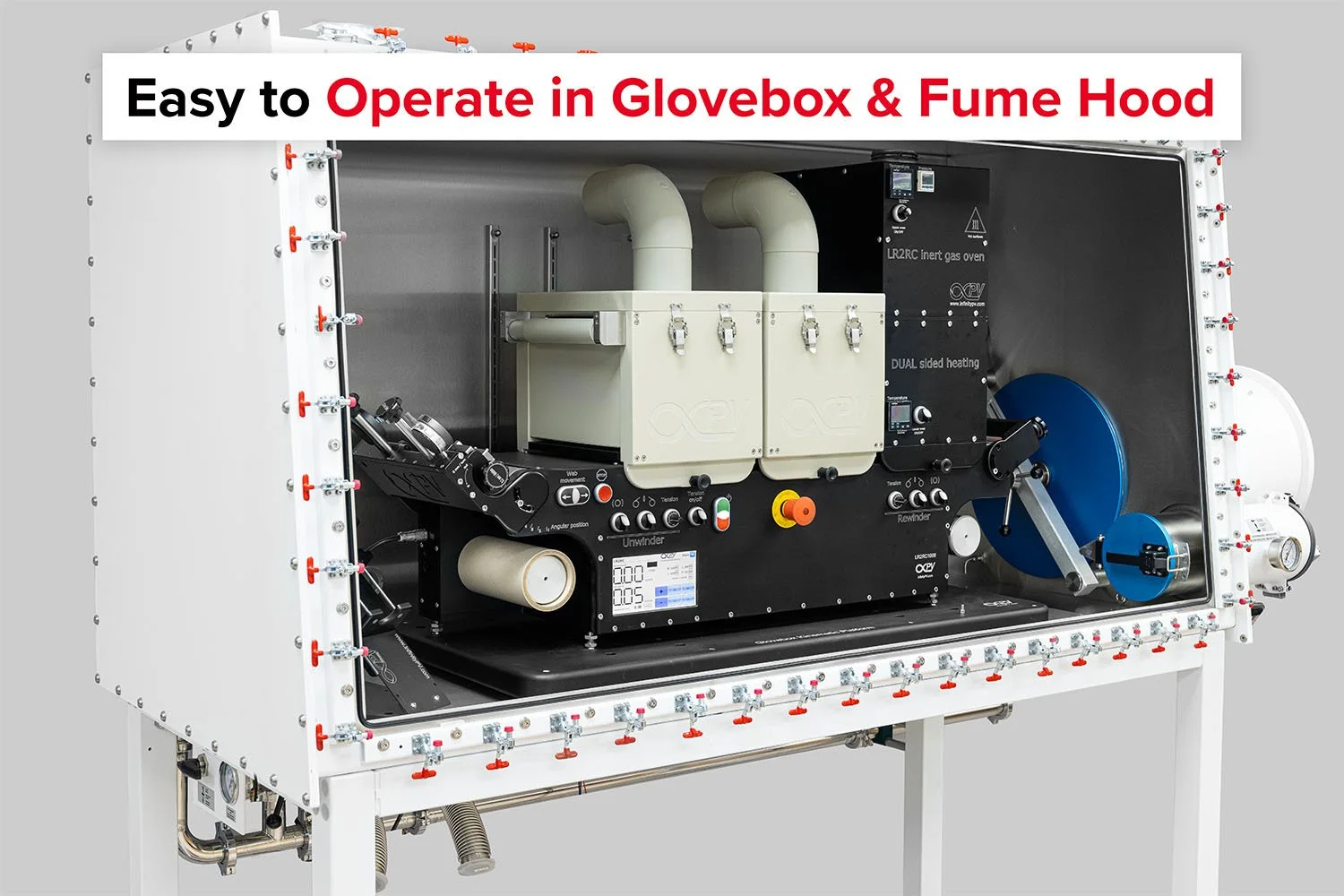

Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.
Customizable: Choose from a variety of lengths and widths, with numerous components available.
Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, corona surface treatment, laminators, air knives, laser scribers, wet processing and more.
Modular Drying/Curing System: Accommodates various drying and curing methods.
Software Control Option: Advanced control options for precision and repeatability.
Web Tension Control: Ensures consistent quality across runs.
CE Certified - CSA/UL Compliant: Meets international safety standards.

Technical Specifications

Operating Power: Single phase (240VAC) for smaller models; three-phase (400VAC) for larger models.
Coating Width: Up to 180 mm (standard models), up to 280 mm (wide models).
Drying/Curing Length: From 250 mm (LR2RC500) to 1250 mm (LR2RC1500).
Web Width: Up to 190 mm (standard models), up to 305 mm (wide models).
Web Speed: 0.05-2.8 m/min (forward and reverse).
Spindles: Automatic compressed air spindles for 3-inch core diameters, adjustable cones for smaller cores in LR2RC500.

Customize Machine and Get a Quotation

Why Use a Laboratory Roll-to-Roll Coater?

The Laboratory Roll-to-Roll Coater is a compact, high-precision lab coater that transforms the way thin functional films are processed. It offers modular customization to fit different needs, scalable efficiency for small-scale production, and a user-friendly design with easy-to-remove components. Ideal for applications like batteries, fuel cells, and solar cells, it allows you to customize a system that’s perfect for your needs.
