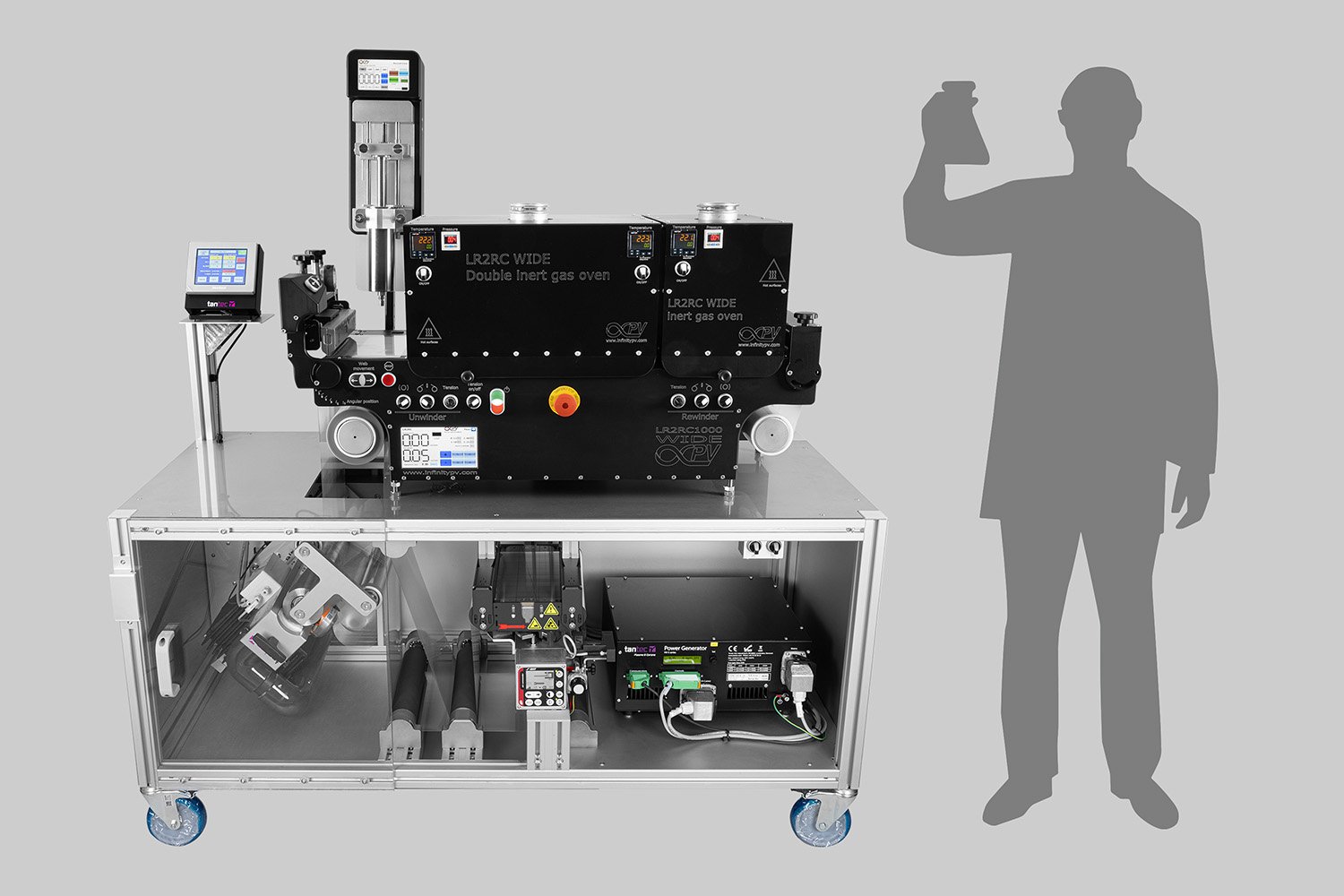

LR2RC1000 OLED Coater
A pilot-scale production line that allows for high throughput production of OLEDs. With the 305 mm web width, corona system, edge guide, and advanced drying system, this setup is truly a slot-die coating workhorse.
A pilot-scale production line that allows for high throughput production of OLEDs. With the 305 mm web width, corona system, edge guide, and advanced drying system, this setup is truly a slot-die coating workhorse.
A pilot-scale production line that allows for high throughput production of OLEDs. With the 305 mm web width, corona system, edge guide, and advanced drying system, this setup is truly a slot-die coating workhorse.
Pilot Scale Processing of OLED
The LR2RC1000 OLED Coater not only enhances your ability to experiment and refine all the layers in the OLED devices but also provides a pathway to scale your research into potential commercial applications. Investing in these advanced features can significantly improve your research efficiency and outcomes.
What’s Included:
LR2RC1000 Wide Platform: Featuring anodized aluminum rollers, web tension control, automatic 3-inch core spindles, touch screen interface, and easy-to-use operation buttons.
Advanced Mounting System: Manual adjustment with digital micrometers units for two-point head to substrate distance readout.
Mammoth Syringe Pump: Provides precise and consistent ink delivery, ideal for research applications.
305 mm Stainless Slot-die Head (280 mm Working Width) incl. Shim Kit
Fitting Kits: High viscosity versions included.
Corona Surface Treater: Enables effective surface treatment of substrates.
Edge Guide: For high precision alignment of the substrate.
Inert Gas Oven and Double Inert Gas Oven: For effective drying and curing at a lab scale, enabling quick setup and adjustments to meet your specific needs.
Adjustable Nip Roller: Tailor your setup for various substrate handling requirements.
Key Features
Compact Size: Fits in laboratories without additional infrastructure.
Customizable: Choose from a variety of lengths and widths, with numerous components available.
Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.
Modular Drying/Curing System: Accommodates various drying and curing methods.
Software Control Option: Advanced control options for precision and repeatability.
Web Tension Control: Ensures consistent quality across runs.
CE Certified - CSA/UL Compliant: Meets international safety standards.
Technical Specifications
Operating Power: Three-phase (400VAC)
Drying/Curing Length: 1,25 m
Web Width: Up to 305 mm
Web Speed: 0.05-2.8 m/min (forward and reverse).
Why Choose the LR2RC1000 OLED Coater?
Comprehensive Capabilities: The combination of advanced components (like slot-die head, Edge guide, pump, corona, and oven systems) allows you to conduct a wide range of experiments, from double sided slot-die coating to preprocessing of Cu foil, all in one system.
Scalability: Designed for roll-to-roll (R2R) applications, this system facilitates the transition from lab-scale experiments to larger-scale production, crucial for commercial viability of printed batteries.
Cost-Effective Research: By integrating multiple functions and reducing the need for additional equipment, this system can help lower overall research and development costs while maximizing efficiency.
Customizable and Modular: With modular components, the setup can be easily adapted to fit your specific requirements, making it the ideal platform for diverse applications.
