The Slot-Die Coater is designed to meet the stringent needs of advanced thin-film applications. Offering exceptional coating uniformity, it delivers precise thickness control, perfect for both organic and inorganic materials. This cutting-edge coater ensures outstanding results for a wide range of applications, including printed batteries, solar cells, fuel cells, OLEDs, and sensors.
State-of-the-Art Slot-die Coater for Thin-Film Research

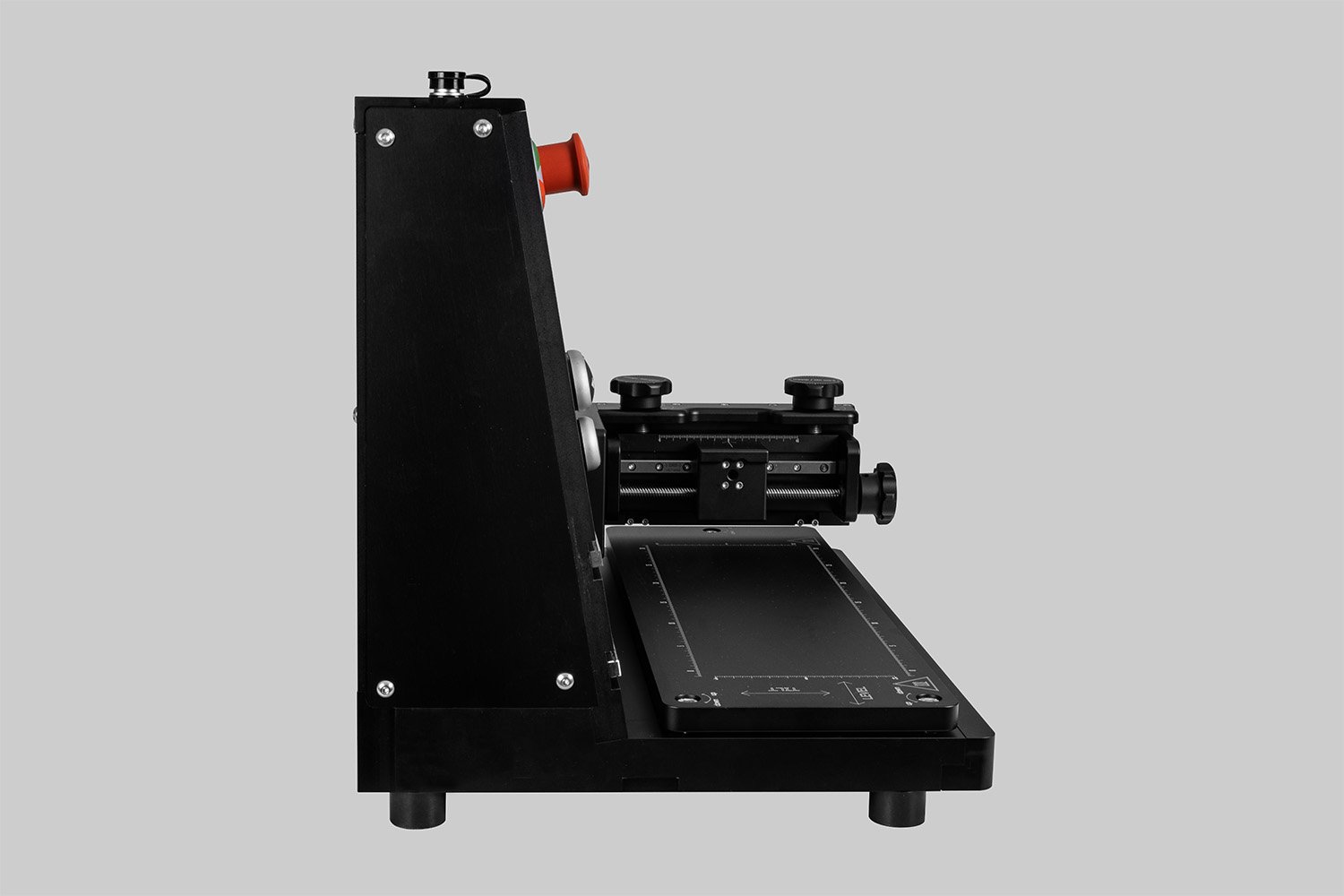

The infinityPV Slot-die Coater is a compact, high-precision sheet coater designed for research and development of advanced thin films. It delivers highly uniform and reproducible coatings for applications including printed batteries, solar cells, fuel cells, sensors, MedTech, and other functional materials. Suitable for both organic and inorganic formulations, it offers excellent control of coating thickness and process parameters to accelerate material and device development.
Key Features
Quick Set-Up and Easy Operation
Modular Design with interchangeable components
Cantilever Structure for convenient substrate handling
Heated Vacuum Chuck for precise alignment and drying
Micrometer Adjustments for head-to-substrate gap
Integrated Syringe Pump for precise ink delivery
Versatile Coating/Printing Options: Slot-Die, Bar, Knife, Pen, and Flexo
Compact Design: Compatible with glovebox and fumehood
CE Certified & CSA/UL Compliant for global use
Technical Specifications
Operating Power: 110-240 VAC
Coating Speed: 1.2–33 mm/sec
Vacuum Chuck Temperature Range: RT–90 °C

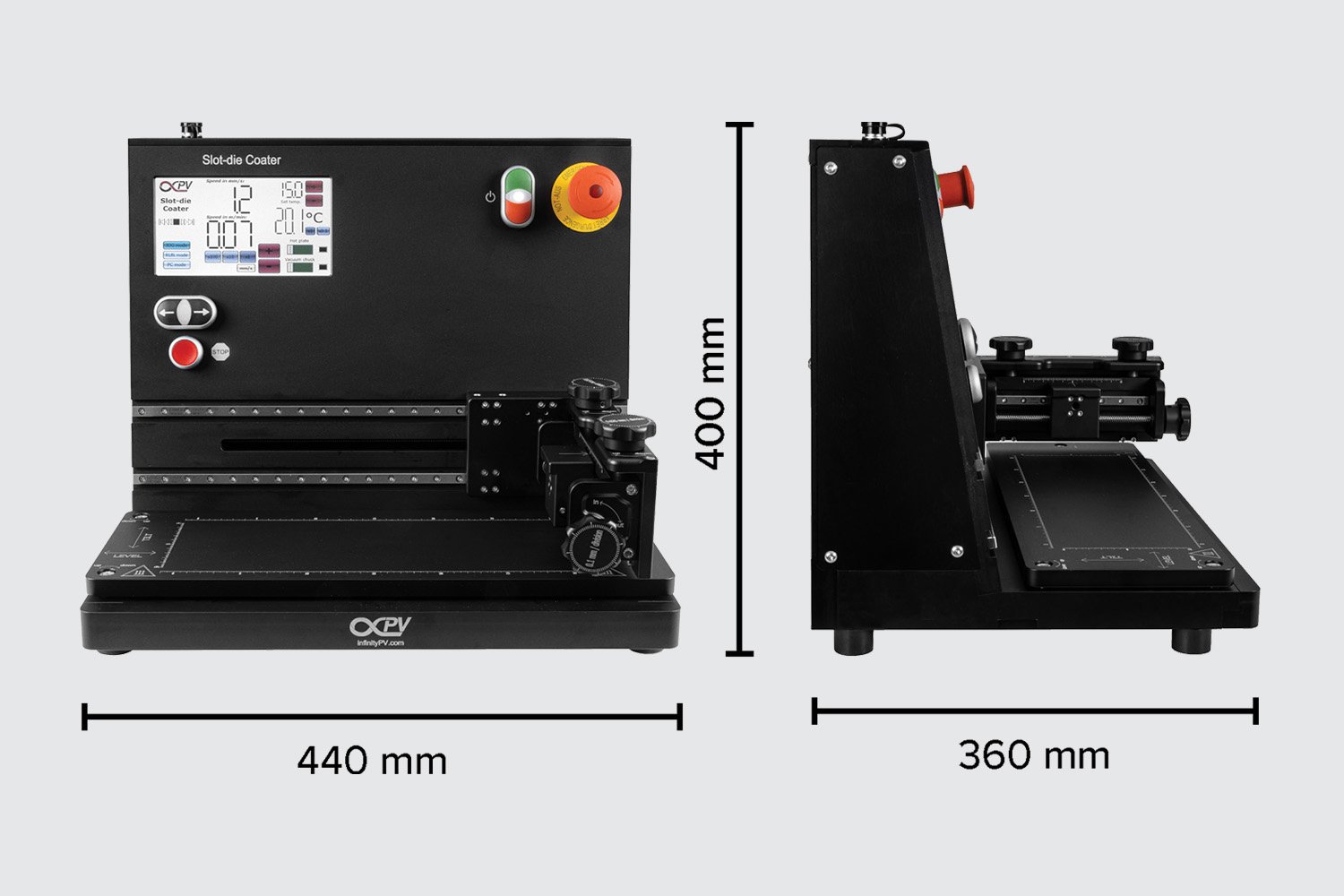

Size: 340 x 420 x 400 mm (WxDxH)
Weight: 22.5 kg
Height Adjustment Resolution: 1 μm

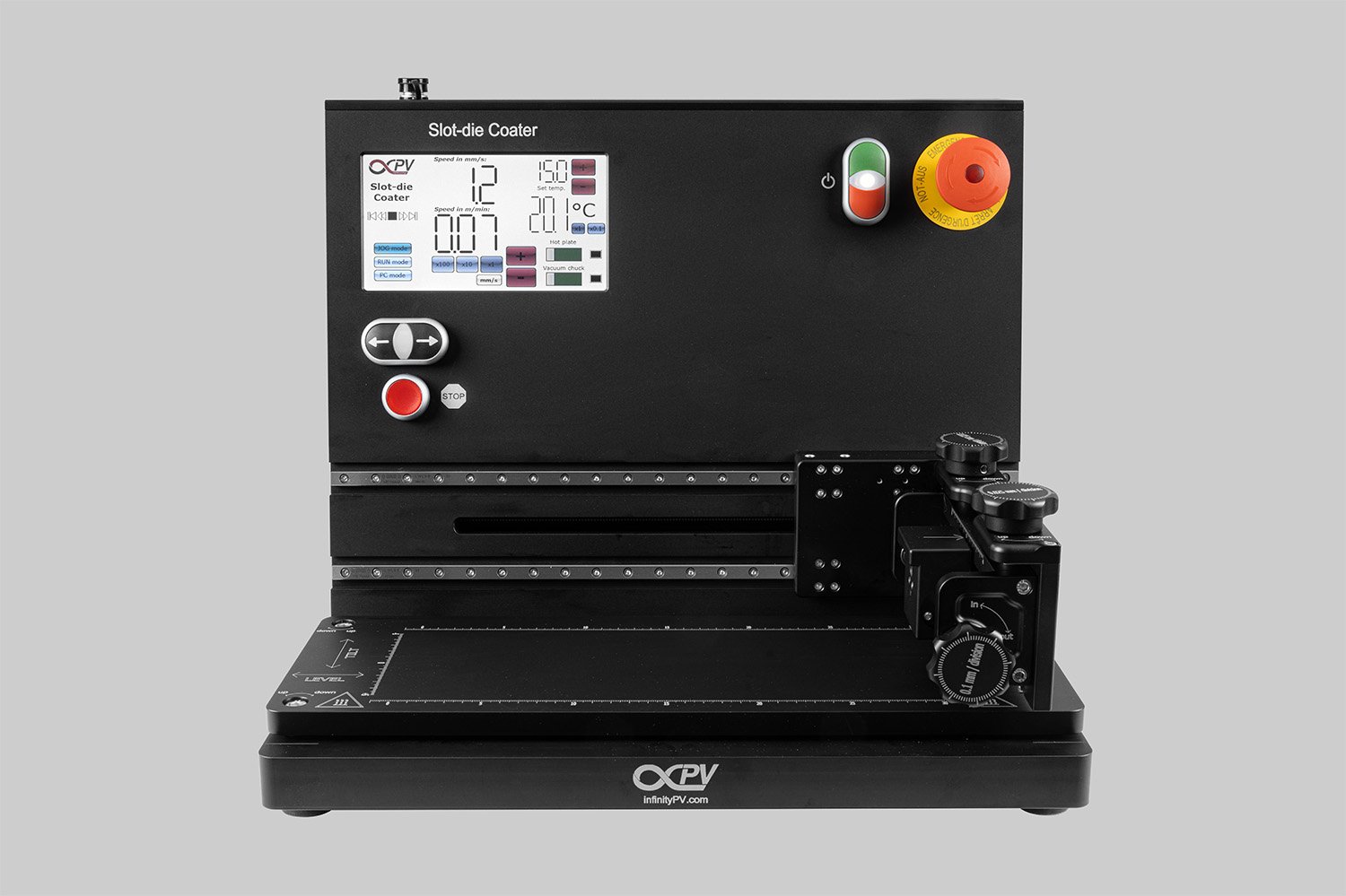

Control Interface: Touchscreen and physical buttons for easy operation
Option for Heated Slot-die Head
